Orange APP |  VT55 TPMS Tool | Manual

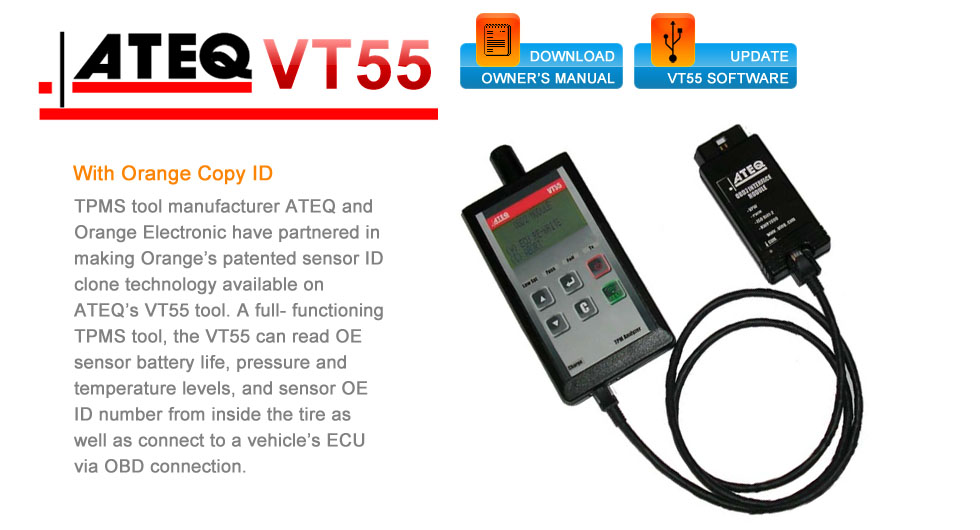

VT55 TPMS Tool
TPMS tool manufacturer ATEQ and Orange Electronic have partnered in making Orange’s patented sensor ID clone technology available on ATEQ’s VT55 tool. A full- functioning TPMS tool, the VT55 can read OE sensor battery life, pressure and temperature levels, and sensor OE ID number from inside the tire as well as connect to a vehicle’s ECU via OBD connection.

Functionalities:
‧Orange COPY ID option
‧ECU OBDII reprogramming
‧Duplicate sensor warning
‧Radio frequency detection
‧Diagnostic Trouble Code (DTC) retriever
‧Remote Keyless Entry (RKE) tester
‧Easily updatable
‧Multilingual capability
‧Wirelessly scan tire pressure,temperature and OE ID number

IN THE BOX:
‧VT55 TPMS Tool
‧Relearn magnet
‧OBDII connector
‧Wall charger
‧USB connector
‧Mobile carrying case
‧Quick reference guide



VT55 Software Update
TPMS tool manufacturer ATEQ and Orange Electronic have partnered in making Orange’s patented sensor ID clone technology available on ATEQ’s VT55 tool. A full- functioning TPMS tool, the VT55 can read OE sensor battery life, pressure and temperature levels, and sensor OE ID number from inside the tire as well as connect to a vehicle’s ECU via OBD connection.

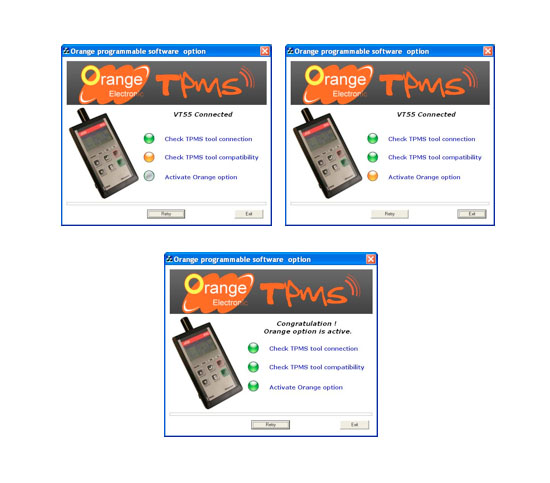

Follow the procedures below to update VT55 software to include ID programming onto Orange sensors:

  • Install WebVT ATEQ’s software updater for tools
  • Download ID-Write Update to enable Orange ID cloning
  • Connect VT55 to computer via USB
  • WebVT Automatically Launched will check VT55 software version
  • Update tool to most current software version (1-48 or newer) on WebVT
