OPSS II

NEW Technology

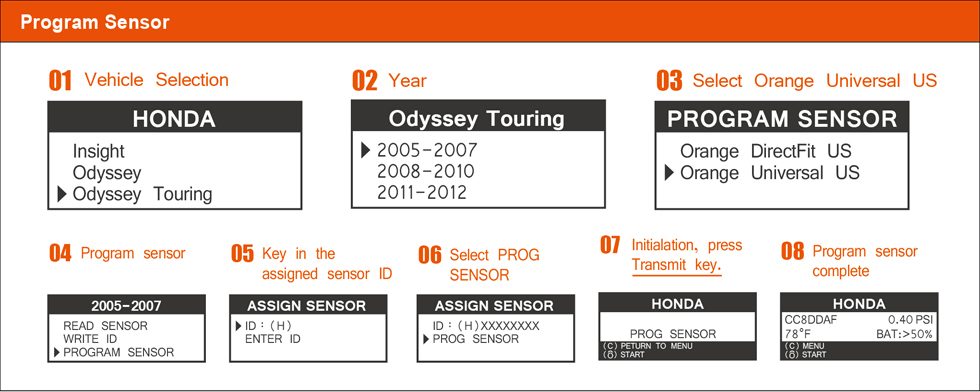

1. Wirelessly programmable : Universal O-sensor can be programmed after mounting on the wheel.
2. Relatively stable : lnstead of programming entire protocol, Universal O-sensor simply modify different "Blocks"

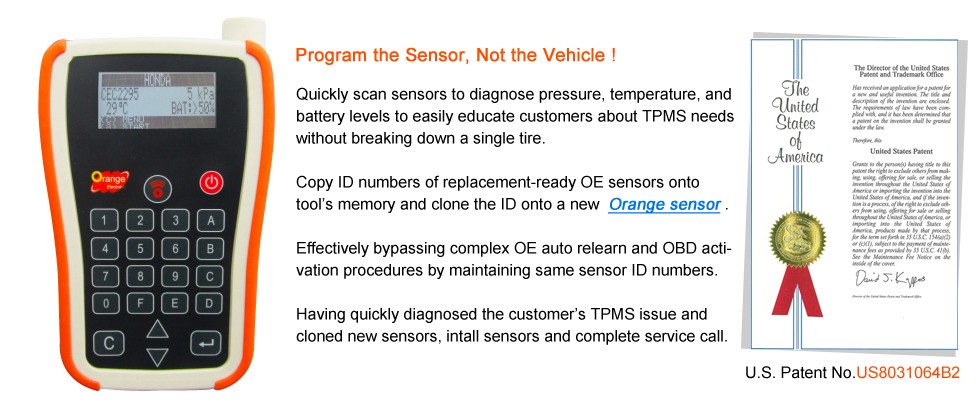

Program the Sensor, Not the vehicle.
‧ Quickly scan sensors to diagnose pressure, temperature, and battery levels to easely educate customers about TPMS needs without breaking down
single tire.

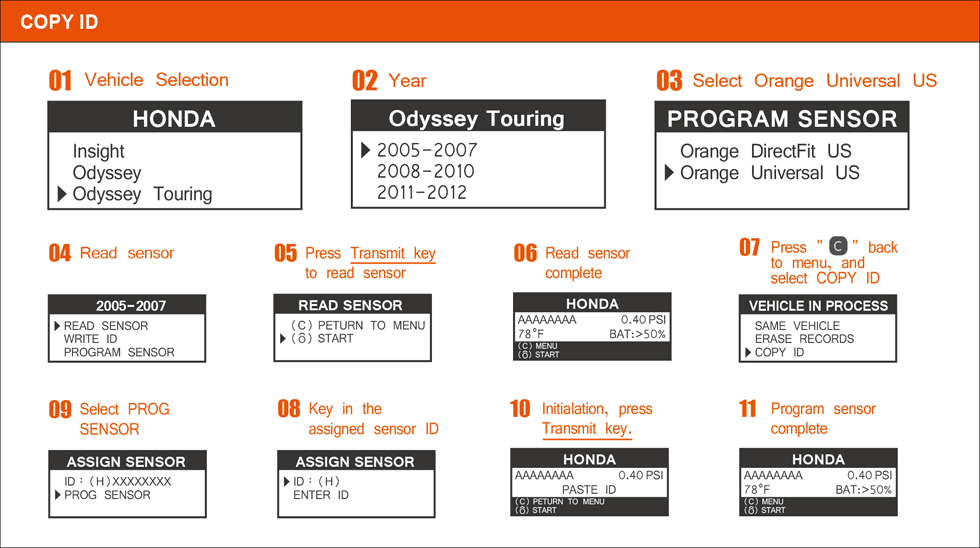

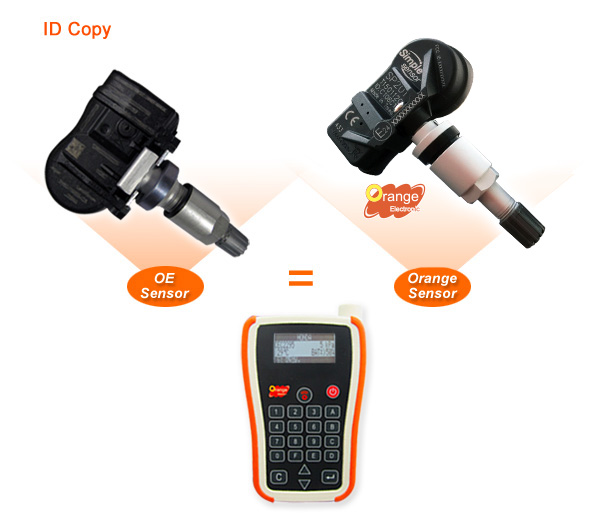

‧ Copy ID numbers of replacement-ready OE sensors onto tool's memory and clone the ID onto a new Orange sensor.
‧ Effectively bypass complex OE auto relearn and OBD ativation procedures by maintaining same sensor ID numbers.
‧ Having quickly diagnosed the customer's TPMS issue and cloned new sensors, intall sensors and completet service call.







OPSS II Tool Specification
Dimensions :
6 in. x 3.25 in. x 1.3 in.
Battery :
9V
Communications port :
USB
Display :
4 line LCD, 2.6 in. x 1.26 in.
Weight :
220g
Operational temp :
41°F to 113°F
Relative humidity :
70-80%
