Motorcycle TPMS (M203)

While we don’t talk about or say the word Safety very often, our constant efforts towards maintenance, careful selection of gear, and focused attention to riding conditions are done so that we can and do have a safe ride. Tire pressure and tire temperature are just as important to tire condition as thread. You need a reliable TPMS / Tire Pressure Monitoring System.

/ 24-Hour Real-time Monitoring System
/ Tire Pressure & Temperature Alert
/ Motorcycle Battery Voltage
/ Patented Antenna

We focus on the heavy motorcycle no shelter mechanism of the M203 display panel design, with sealed
non-porous structure, the effect of 100% waterproof. Heavy motorcycle riders can still enjoy the
protection of wireless tire pressure monitoring even in the rain.

The Display Turns Red and Numbers Flash To Warn
You If Dangerous Levels Or Presets Are Reached

Abnormal High / low tire pressure warning

The display will continue to show in red until the abnormal tire pressure has improved when the motorcycle TPMS detects abnormal tire pressure.



Abnormal temperature warning

The display will continue to show in red until the abnormal temperature has improved when the motorcycle TPMS detects abnormal temperature.

Abnormal voltage warning

The display will continue to show in red until the low voltage sensor has replaced when the motorcycle TPMS detects sensor voltage too low.

High / low tire pressure detection

High / low tire pressure detection, The display will show the value in white the word blue when motorcycle tire pressure in normal range.



Low-pressure warning Standard Setting :
Default warning criteria : 25 psi

Default warning range : 17-32 psi

High-pressure warning Standard Setting :
The default warning criteria : 44 psi

Pre-warning range : 38-49 psi

High-temperature detection

Mode 1 Displays Tire Pressure and Temperature Alternately.

Temperature detection, The display will show the value in white the word blue when your motorcycle in the normal range of temperature.



Standard high-temperature alert setting:
Default warning criteria : 176 °F
Default warning range : 140 - 248 °F

Voltage detection

Mode 4 Displays Bike System Voltage.
The display will show the value in white the word blue when your motorcycle in the normal range of voltage.

Assuming the sensor battery capacity has been exhausted or need to replace tires, the sensor must relearn through the display in order to show the correct information.

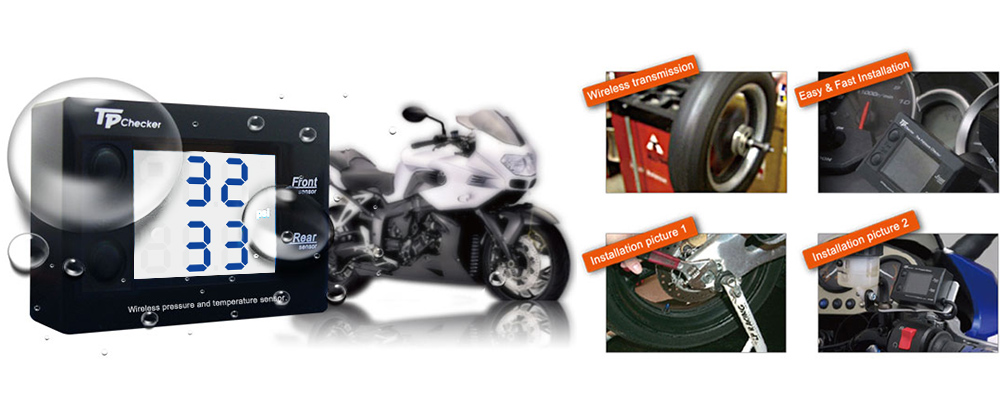

Waterproof display panel

Easy to Manage Your Motocycle Information and Monitor Tire Changes Anytime.

Our TPMS Can Make That Ride More Confident and Safer

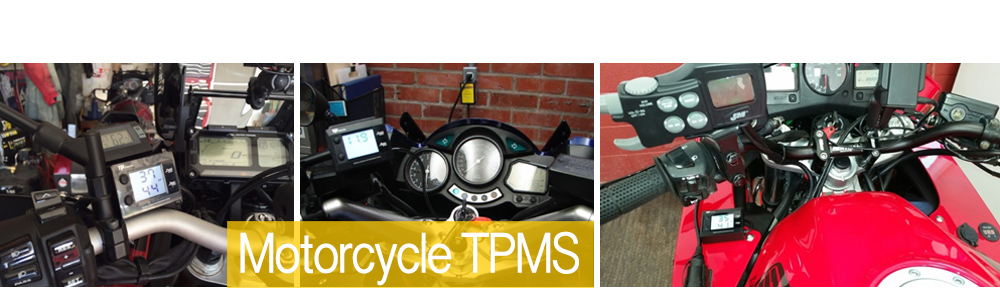

Our new Orange-Electronic M203 TPM Systems are an essential tool that should be a part of Your motorcycle’s On-board

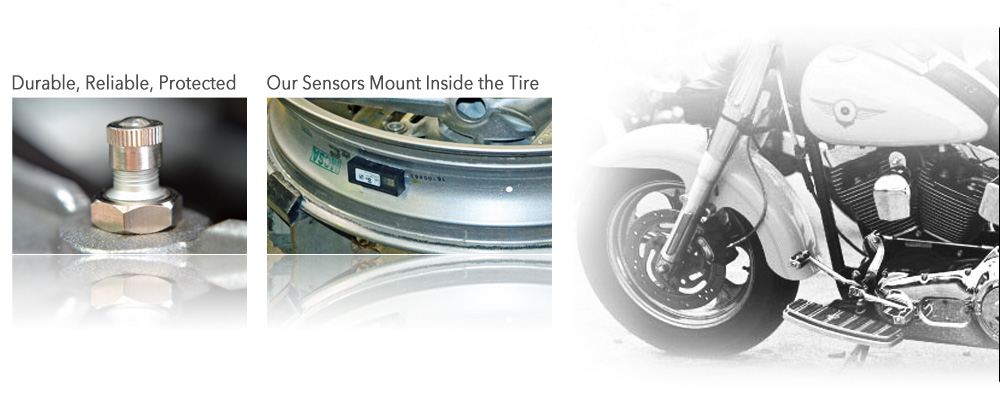

Information System. These are designed to mount inside your Tubeless Tires. Sport, Race, Adventure, Touring,
and Cruising are All made safer with TPMS Installed.
So, No Matter How or Where You Ride,
Our TPMS Can Make That Ride More Confident and Safer.


M203T / M203T1 / M203T2 Specifications

A. Receiver Specifications
Operating voltage 9V-16V (DC)
Operating Current < 150mA
Operating Temperature -4°F to 176°F / -20oC to 80°C
Storage Temperature -4°F to 176°F / -20oC to 80°C
Tire pressure / temperature reading unit psi, bar, kPa / °F, °C
Dimension of display L:4.5cm x W:6.2cm x H:2cm
B. Sensor and Transmitter
Operating Temperature -22°F to 230°F / -30°C to 110°C
Storage Temperature -40°F to 257°F / -40°C to 125°C
Operating humidity Maximum 95%
Operating Frequency 433.92 MHz± 50kHz
Pressure Monitoring Range 0 ~ 74psi / 0 ~ 508kPa / 0 ~ 5.1bar
Pressure Reading Accuracy ±1psi / ±10kPa / ±0.1bar (as normal pressure)
Temperature Monitoring Range -22°F to 230°F / -30°C to 110°C
Temperature Reading Accuracy ±4 oC in normal environmental conditions
Transmission Power Maximum 75.1 dBuV/m
Battery 3V
Direct Replacement for M203T: TR412/11.5 mm for front and rear rim hole size
M203T1: TR430A/8.3 mm for front and rear rim hole size
M203T2: TR430A/8.3 mm for front and
TR412/11.5 mm for rear rim hole size

NO. Items pcs
A Display Unit 1
B Sensors 2
C Velcro for Display 2
D Ties for power cord 3
E Clip 2
F L-shaped extension valve 1
  Manual 1

Note:
1.Due to different rims’ spec, this product does not fit for all rims
2.Torque wrench is 40~45kgf-cm (4~4.5Nm ; 35.4~39.8 inlb).
